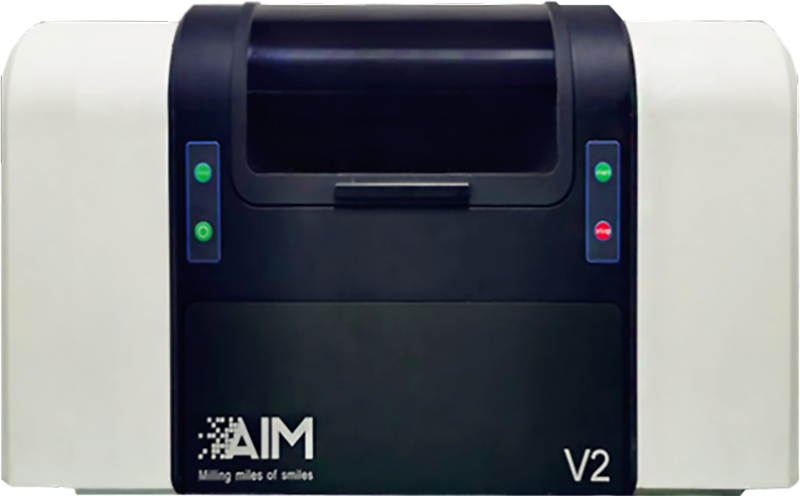

Korean AIM-V2 Dual-Axis Glass-Ceramic

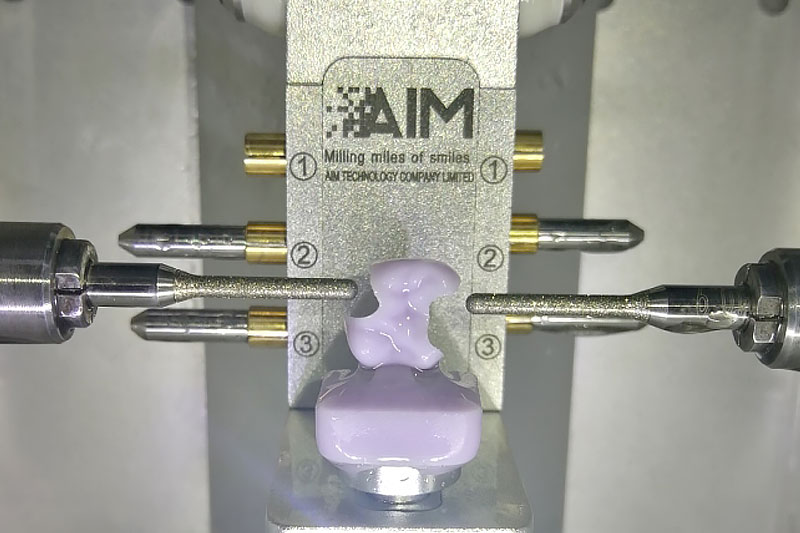

- Realize machining of complex shapes
- Efficient machining of fine structures
Control System
Seamless connection between embedded computer and motion controller
Self-developed electric spindle
Air-cooled, stable and efficient Low noise, lightweight

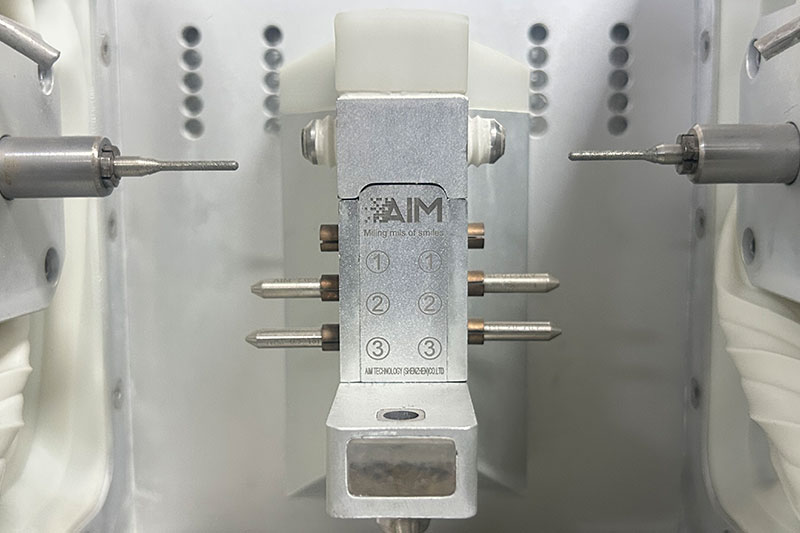

One-click loading of materials and tool pins
- Capable of loading a 6-position tool magazine
- fully automatic grinding pin replacement
- one-click material loading without the need for any tools
Fully open system
Compatible with ceramic blocks of all brands on the market and accepts STL file data formats from all open-architecture intraoral scanners
With Worknc、millbox、hyperdent CAM software and timely online technical support,there is no need to worry about grinding strategies
AIM-V2 Dual-Axis Glass-Ceramic
Name
Tabletop pneumatic 6-axis machine
Equipment type
40kg
Weight
Glass, Ceramics, PMMA (Acrylic)
Material Compatibility
20～40℃
Operating temperature
55x50x45/mm
X*Y*Z Travel range
±0.01mm
Processing Accuracy
Inlays, Veneers, Inner Crowns, Full crowns, Fixed bridges.
Applicable products
￠4
Tool Holder Diameter
350W
Power
6 pieces
Number of tools loaded in the tool magazine
≤1.2KW
Dimension
1000~6000 rpm
Speed Range
～60dB
Operating Noise
L46 x W37.5 x H34 cm
Dimensions
220V
Power Supply Voltage
Automatic tool changing.
Tool changing method
