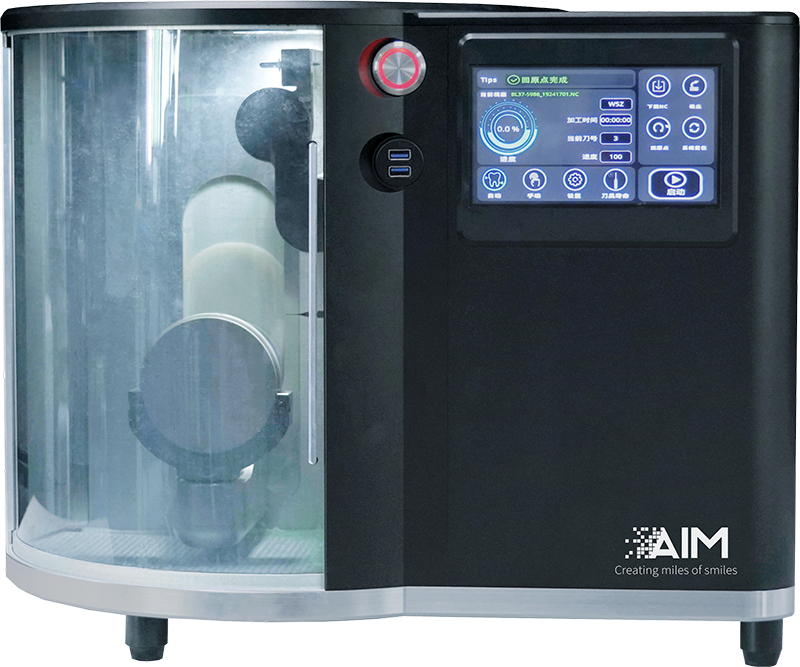

W5Z 5-Axis Zirconia Milling Machine

With Worknc、millbox、hyperdent CAM software and timely online technical support,there is no need to worry about grinding strategies

W5Z 5-Axis Zirconia Milling Machine

Name

55 cm (L) × 45 cm (W) × 42 cm (H)

Dimensions

48kg

Weight

220V/230V, 50/60Hz

Power Supply/Voltage

±0.01 mm

Relocation Precision

Axis A ：A﹢45°/-145°
Axis B：0-360°

Processing Angle

500W

Spindle Power

148 mm × 105 mm × 110 mm

XYZ Travel

10,000–60,000 RPM

Spindle Speed

Dry and Wet

Processing Method

~70 dB

Operating Noise

8 positions

Tool Library Positions(Detachable ToolLibrary)

￠4

Tool Holder Diameter

9–26 minutes per unit

Processing Efficiency

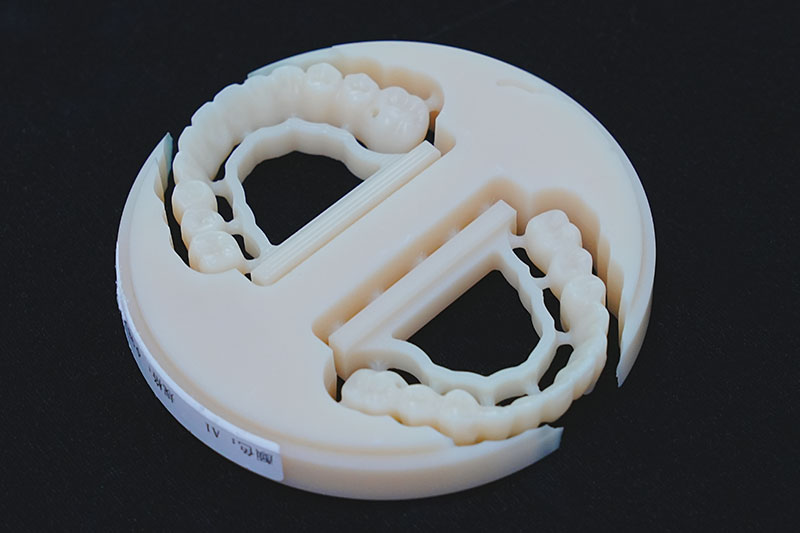

Zirconia, PMMA, PEEK, wax disc (max diameter 98mm, max thickness 35mm)

Dry Cutting Material Range

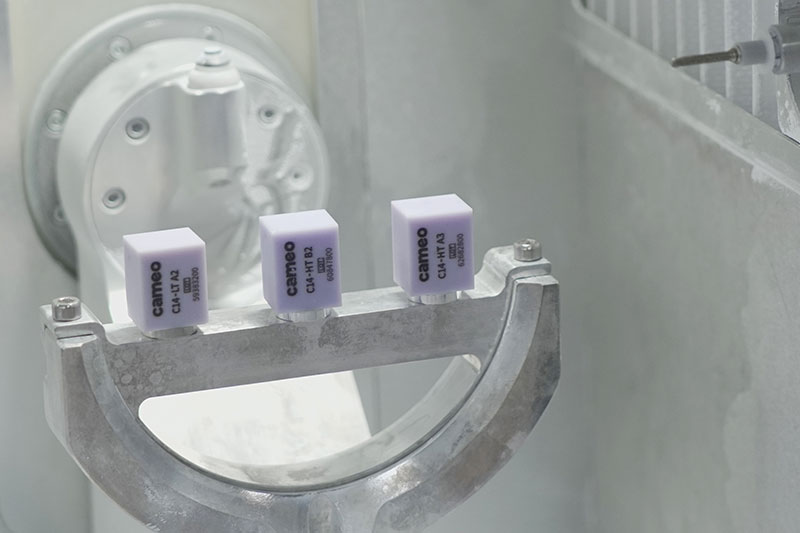

Long-form glass ceramics, lithium disilicate ceramics, composite materials, PMMA, titanium rods

Wet Cutting Material Range

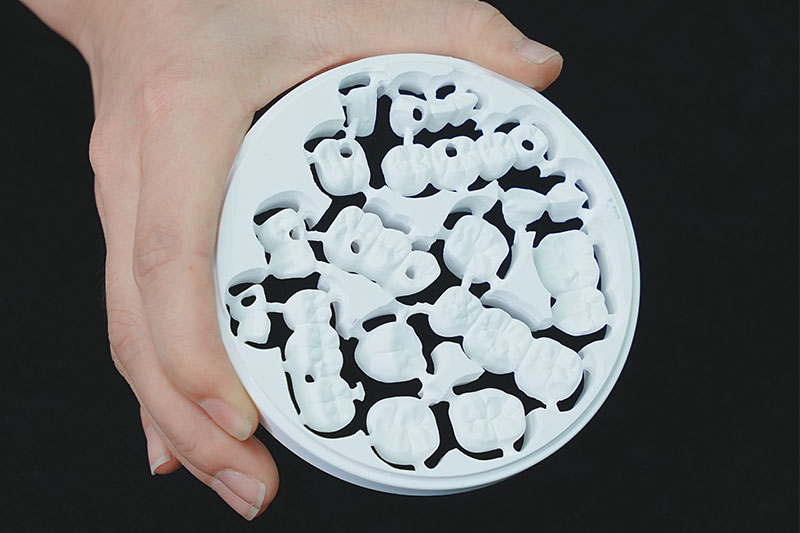

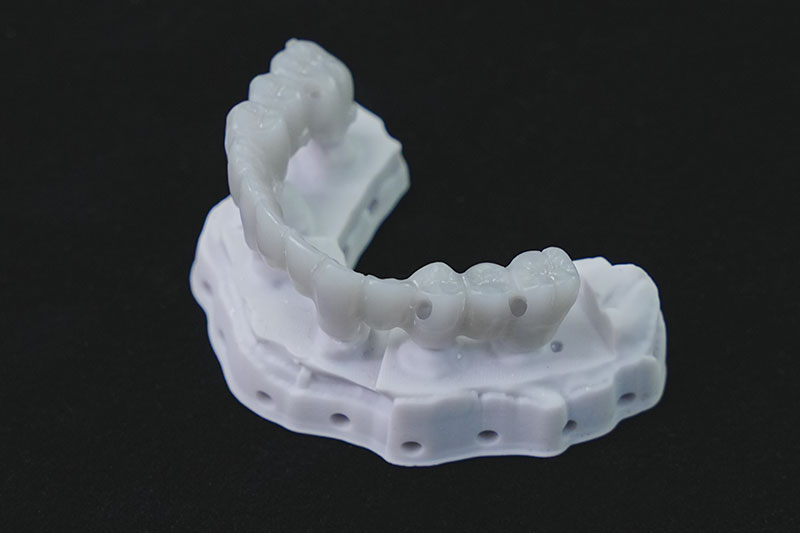

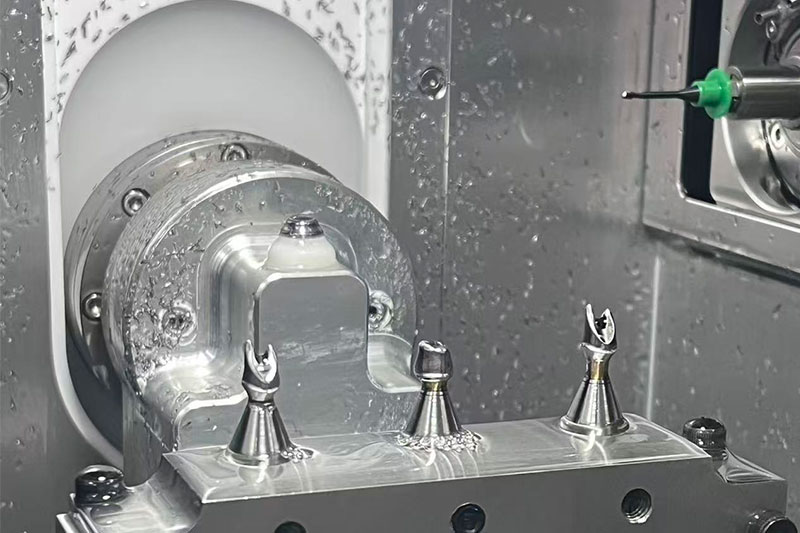

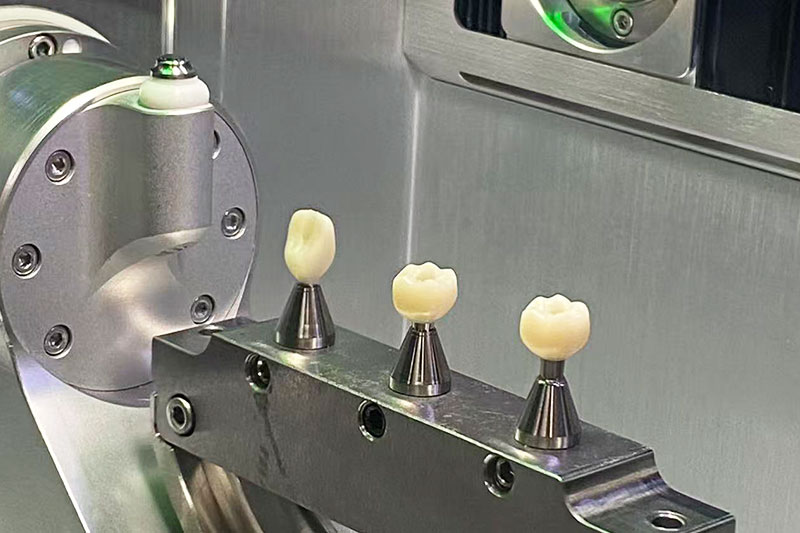

Blocks, veneers, inlays, full crowns, open-bite splints, abutments

Processing Types
